Bullard Air Filters

BAF-41P2

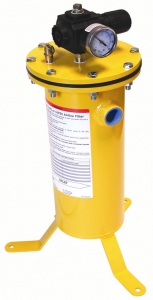

Bullard Air Filters (Supplying Clean, Dry Air to Protect I-R Motors)

Air filters are extremely important in maintaining a good working pneumatic motor by removing condensed water and foreign particulates. The compressor-supplied air enters the filter and travels through 7 layers of filter material before exiting through the outlet port. Both have pressure gauges, relief valves set at 125 psig and output lines of 3/8″ NPT (Fem.). These stand alone filters also act as a reducer for larger incoming air lines. The 2 line model weighs 24 lbs. while the 6 line model is 28 lbs.

BAF-41P22 Air Port Tripod w/ Regulator, Check Valve, and 1″ Chicago Fitting$433.00
BAF-41P66 Air Port Tripod w/ Regulator, Check Valve, and 1″ Chicago Fitting$549.00
BAF-RCReplacement Canister$92.00
HT-RH-5050′ (3/8″) Rubber Air Line w/ High Flow Fittings$112.00

Air Compressors

HoverTrowel has requisitioned Jenny/Emglo to manufacture portable air compressors to our specifications and Ingersoll-Rand’s low torque motor requirements. These compressors are performance-rated and designed to provide years of efficient and reliable service. There are two models available 230 volt that can be configured with a three-phase 460-volt motor on special order.

The Jenny model G5A-38P is a 4-cylinder, single-stage unit mounted on a 30-gallon ASME code receiver. Powered by a 5 HP motor, this compressor delivers 18.3 CFM of air at 100 PSI. The unit is available with either a single-phase 230 volt motor or a three-phase 460 volt motor. Both single-phase and three-phase models include a motor starter and on/off switch as standard. The 30-gallon portable design is well-balanced for ease of movement. A 3/8 NPT regulator and gauge assembly is mounted for easy connection to the air hose. Ideal for HoverTrowel’s low torque pneumatic power trowel.

The Jenny model J5A-30P is the biggest electric-wheeled portable compressor available. This four-cylinder pump comes mounted on a 30-gallon ASME portable tank. Its 5 HP motor is able to deliver 25 CFM of air at 100 PSI. The unit is available with either a single-phase 230 volt motor or a three-phase 460 volt motor. Both single-phase and three-phase models include a motor starter and on/off switch as standard equipment. This heavy-duty 30-gallon portable unit has 10″ diameter pneumatic tires for easy movement at the job site. Ideal for HoverTrowel’s low torque pneumatic power trowel.

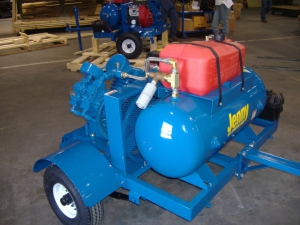

The Jenny model U18KGB-PT is a tow behind cart compressor. It is powered by a Kohler 18 hp gas engine that sup- plies 42 cfm at 90 psi. His compressor is a two stage trailer mounted unit. With a convenient electric starter. Designed, tested and proven to meet the demands of the construction industry . The trailer is 5 ‘6” in width and 6′ 6” in length and 4’ in height, weighing 1,125 lbs shipping weight. ** This compressor is ideal for HoverTrowel’s high torque pneumatic power trowel model. **

G5A-30P

U18KGB-PT

610-1407

G5A-30PMobile 30 Gallon Tank 230v (Single Phase) 18 cfm @ 90 psi$2,230.00
J5A-30-P-3Mobile 30 Gallon Tank 230v (Three Phase) 24 cfm @ 90 psi$2,980.00
U18KGB-PTMobile 30 Gallon Tank, 18 HP Kohler Engine 42 cfm @ 90 psi$6,923.00
610-1407Hose Reel Bolt on Kit with 100′ 3/8″ Hose, 1/4″ NPT$398.00
360-1123-38100′ 3/8″ Air Hose, 1/4″ NPT$145.00
360-1123-12100′ 1/2″ Air Hose, 1/4″ NPT$175.00
