Hexpin Floor Preparation System
ATTACHES EASILY TO A FLOOR MACHINE…..MAKING IT A GREAT VERSATILE TOOL TO HAVE ON THE TRUCK!
The Pearl Hexpin(R) System has revolutionized floor preparation. Use the standard Hexpin(R) Plates or Hexpin(R) Blocks with our patented system of interchangeable Hexpins(R) for grinding, sanding, polishing and coating removal. Pearl’s unique spring-based technology allows the Hexpin(R) attachments to float easily over rough surfaces while the fluted plate design helps maintain dust control. Engineered for use on standard floor buffers and dual-headed diamond grinders, the Pearl Hexpin(R) System is a tool that gives you choices. When looking to in-crease productivity and profitability, look to Pearl Professional Prod-ucts for true craftsmanship… THE PEARL HEXPIN(R) SYSTEM.

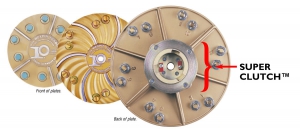

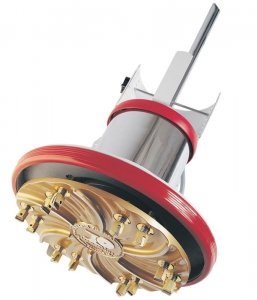

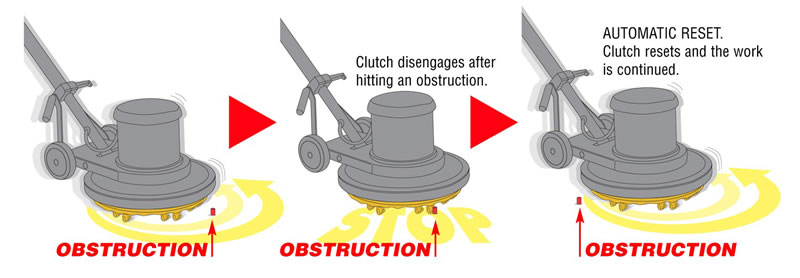

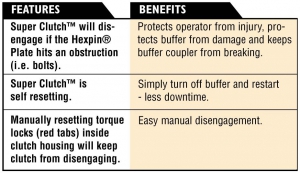

HEXPLATES W/SUPERCLUTCH FOR 15” HEXPLATE (for 17” Floor Machine)
FULLY ASSEMBLED HEXPLATES
| HEX17CLTH | 15” Plate W/Clutch Only | $768 |
| HEX1764CLT | 15” Plate W/Clutch & 6 Diamond Pads | $1,919 |
| HEX1712CLT | 15” Plate W/Clutch & 12 Green Diamond Pins (General Purpose) | $1,424 |
| HEX1712CCLT | 15” Plate W/Clutch & 12 Gold Diamond Pins (Course Diamonds) | $1,569 |
| HEX1712BCLT | 15” Plate W/Clutch & 12 Blue Diamond Pins (Hard Bonded) | $1,650 |
| HEX17CBDCLT | 15” Plate W/Clutch & 12 Carbide Pins | $1,278 |
| HEX17QCCLT | 15” Plate W/Clutch & 6 Quick Change Pins | $940 |
| HEX17FTCCLT | 15” Plate W/Clutch & 6 Turbo Cut Pins | $925.69 |
| HEX17BPDCLT | 15” Plate W/Clutch & 6 Hook & Loop Backing Pads | $1052 |
| HEX17CBD3CLT | 15” Plate W/Clutch & 12 Carbide #3 Cutter Pins | $1,503 |
| HEX17CBD4CLT | 15” Plate W/Clutch & 12 Carbide #4 Cutter Pins | $1,595 |
| HEX1706EZCLT | 15” Plate W/Clutch & Diamond EZ and 6 Pads | $1,535 |
| HEX1712EZCLT | 15” Plate W/Clutch & Diamond EZ and 12 Pads | $2,064 |
HEXPLATE ATTACHMENTS FOR 15” HEXPLATE

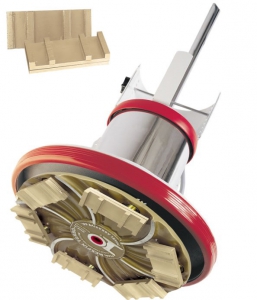

Pearl has a NEW AND IMPROVED Diamond Segmented Pad (HEX4PAD) designed to be used on the 15” Hexplate TM. They are made with an overall larger grinding/sanding area which increases production. When attached to the 15” Hexplate TM, the new and im-proved Diamond Segmented Pads extend past the edge of the plate allowing the operator to GRIND OR SAND RIGHT UP TO THE EDGE OF THE WALL.
All Pearl’s diamond segmented pad attachments are engineered with an overall larger grinding surface area than the competition. This extends the life and improves the all-around grinding speed and performance. Can be used wet or dry on concrete surfaces for grinding and coating removal.
| HEX1764 | 15” Plate W/6 Diamond Pads | $1,648 |
| HEX1764CLT | 15” Plate W/Clutch & 6 Diamond Pads | $1,919 |
| HEX4SEG-MFD | Complete Diamond Pin Holder W/Diamond Pad | $173.08 |
| HEX4PAD | Diamond Pad Only – 4 Segments (Includes Nuts/Washers) | $153.54 |
| HEX4HLDR | Pad Holder Only (Includes Springs & Nuts/Washers) | $19.91 |
| HEX4HRDW | Diamond Pad Hardware (Includes 2 Springs/3Nuts/3 Washers) | $5.81 |
DIAMOND HEXPIN ATTACHMENTS
Designed to be used for grinding and sanding concrete surfaces. Pins offered in GREEN-general purpose, GOLD-heavy duty and BLUE-hard bonded pins for abrasive surfaces.
| HEX1PNG | Replacement General Purpose Green Pins | $76 |
| HEX1PNC | Replacement Course Gold Pins | $91 |
| HEX1PNB | Replacement Hard Bonded Blue Pins for Abrasive Surfaces | $91 |

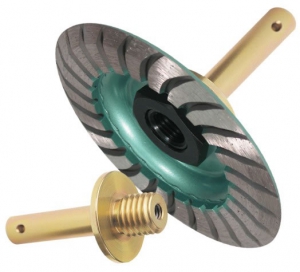

HEX-CUP ATTACHMENT
Specifically engineered 4” diamond cup wheels provide superior grinding on flat slab surfaces. Unique beveled edge design allows these Cup Wheel Hexpins ® to guide easily over slab concrete surfaces.
| HEX1CUP | 4” Cup Wheel (Course) | $177 |
QUICK CHANGE HEXPIN
A unique Hexpin ® attachment with 5/8-11 reverse thread for use with a variety of Quick Change Hexpin ® attachments.
| HEX15811 | Quick Change Hexpin ® | $29.43 |

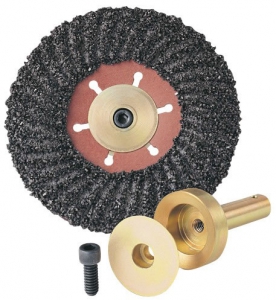

TURBO-CUT HEXPIN ATTACHMENT
Specially engineered for coating removal where abrasive grains are more effective than customary scraping methods. Suited for light scarification of coated surfaces, removal of urethane and rubberized coatings, sealers and light rust from metal surfaces.
| HEX1FTC | Turbo Cut TM Hexpin® (Complete) | $41.83 |
| FSP4516 | 4-1/2” X 7/8 C16-Turbo Cut TM Disc | $8.08 |
| FPD50 | Replacement Plastic Backup Pad | $1.16 |
| FPD70 | Heavy Duty Replacement Plastic Backup Pad | $1.60 |
| HX1FTCHL | Turbo Cut TM Holder W/Nut | $29.75 |
| HX1FTCNT | Nut for Turbo Cut TM Holder | $13.72 |
| HX1FTCSC | Screw for Turbo Cut TM Nut | $.98 |

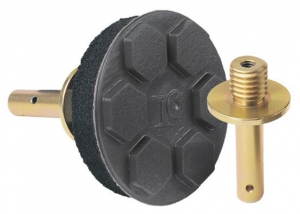

3” DIAMOND DISC PADS HOOK & LOOP ATTACHMENT
Proprietary Hybrid Resin Technology. Special non-marking resin. Thick crack resistant base extends pads life. Beveled edge improves polishing capability.
| HEX1BPD3 | 3” Backup Pad | $15.60 |
| FSPD3050 | 3 x 50 Grit (Olive) | $24.22 |
| FSPD3100 | 3 x 100 Grit (Black) | $24.22 |
| FSPD3200 | 3 x 200 Grit (Red) | $24.22 |
| FSPD3500 | 3 x 500 Grit (Beige) | $24.22 |
| FSPD31000 | 3 x 1000 Grit (White) | $24.22 |
| FSPD32000 | 3 x 2000 Grit (Royal Blue) | $24.22 |
| FSPD3BUFF | 3 x BUFF (Navy Blue) * | $24.22 |
* Use Dry on Dark Color Stones – Wet on Light Color Stones

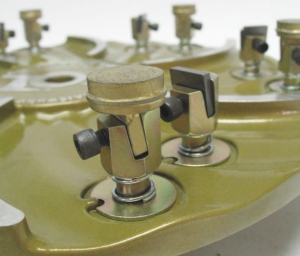

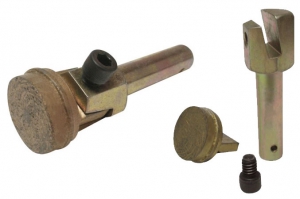

HEXPIN DIAMOND EZ PADS
Specially engineered for sanding, light grinding and floor preparation. Can be used on wet or dry concrete with spring mounted springs allowing for uneven surfaces. Being high enough to provide clearance above carbide chips, there is no need to remove all the chips. Only 6 of these EZ pads are needed to perform very efficiently and effectively with reduced downtime.
| HEX1EZHLD | Holder w/Diamond EZ Pad & Screw (Complete) | $91.80 |
| HEX1EZPAD | Hexpin (R) Diamond EZ Pad | $57.88 |
| HEX3CRBH | Carbide Holder W/Screw for Diamond EZ Pad | 37.77 |
| HEX3SCRE | Replacement Screw for Diamond EZ Pad | $0.95 |
| HEX1SPNG | Heavy Duty Spring | $3.57 |

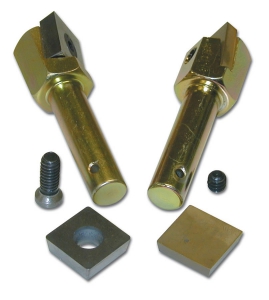

CARBIDE HEXPIN ATTACHMENT
Designed and fitted with a replaceable, four sided, abrasion resistant, carbide insert. Use for scraping and removal of a variety of coatings and paints from concrete surfaces.
HEX1CHIP CARBIDE CHIP – CHIP #1
Use in removing thinset, mastics, glue, rubber or foam backed carpet residue, dirt buildup, ice & paint.
| HEX1CARB | Carbide Holder W/#1 Chip & Screw (Complete) | $55.68 |
| HEX1CHIP | #1 Replacement Carbide Chips | $17.19 |
| HEX1CRBH | Carbide Holder for #1 Chip | $35.48 |
| HEX1SCRE | Replacement Screw for #1 Chip | $0.48 |
HEX3CHIP CARBIDE CHIP – AGGRESSIVE CHIP #3
Useful when taking up unusually difficult-to-remove mastics and glue. The chip has a hole to secure the chip when working in rough conditions.
| HEX3CARB | Carbide Holder W/#3 Chip & Screw (Complete) | $63.55 |
| HEX3CHIP | #3 Replacement Carbide Chip W/Screw Hole | $23.20 |
| HEX3CRBH | Carbide Holder W/Screw for #3 Chip | $37.77 |
| HEX3SCRE | Replacement Screw for #3 Chip | $0.95 |
HEX3CHIP CARBIDE CHIP – VERY AGGRESSIVE CHIP #4
Best used to remove thin paint and epoxy from concrete, but works well for other concrete surface removal applications, So aggressive, we recommend that it only be used with the Hexpin ® Super Clutch TM plate. WITH 8 SHARP EDGES!
| HEX4CARB | Carbide Holder W/#4 Chip & Screw (Complete) | $60.07 |
| HEX4CHIP | #4 Replacement Carbide Chip W/Screw Hole | $24.65 |
| HEX4CRBH | Carbide Holder W/Screw for #4 Chip | $37.02 |
| HEX4SCRE | Replacement Screw for #4 Chip | $0.95 |

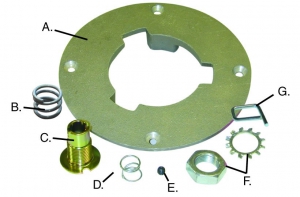

REPLACEMENT PARTS FOR PLATES AND BLOCKS
| HEX1CLP | Clutch Plate | $17.89 |
| HEX1SPNG | Heavy Duty Spring | $3.57 |
| HEX1SLV | Replacement Carbide Sleeve | $21.18 |
| HEX1SCRE | Screw | $0.48 |
| HEX1HRDW | Nut & Lock Washer | $5.38 |
| HEX1EZPIN | EZ Lock Pin | $1.18 |

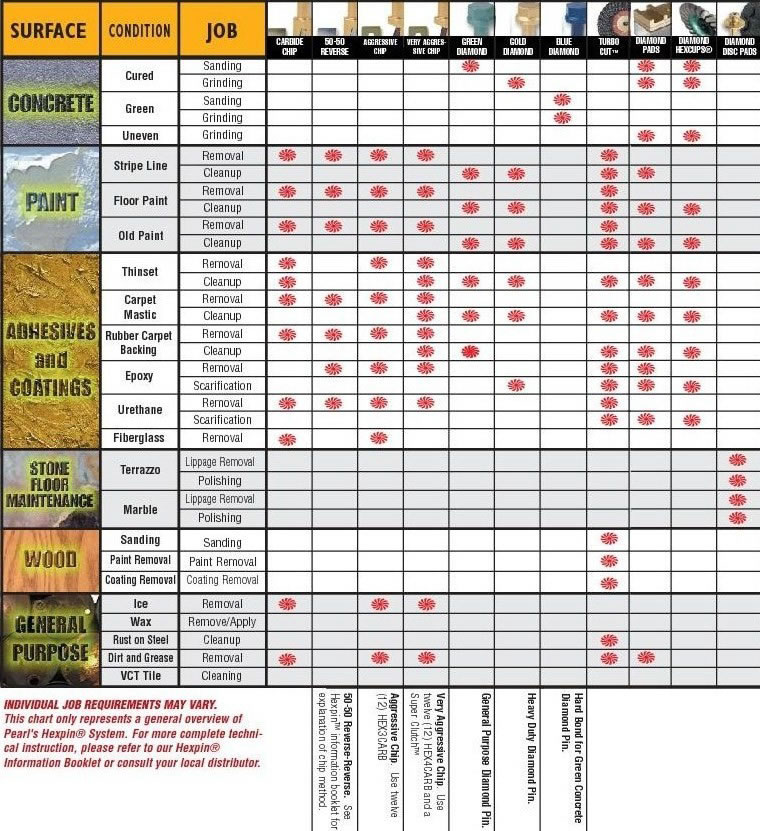

Application Chart
17” TURBO MAX BUFFER HEAVY DUTY FLOOR MACHINE
| HEX1BFRHD | 17″ Buffer Heavy Duty Floor Machine – 1.5 HP/175 RPM | $1,568.00 |
|---|---|---|
| HEX1BFRHDI | 17″ Buffer Heavy Duty Floor Sealed Induction – 1.5 HP/175 RPM | $1,987 |
- 1-1/2 HP DUAL CAPACITOR
- BALDOR AC MOTOR AND SDP (SEVERE DUTY PLANETARY)
- 3 IDLE GEAR BOX—160 RPM
- LONG 50’ (14-3) CORD
- IDEAL WITH 15” HEXPLATES
17” TURBO MAX BUFFER ACCESSORIES
| BUFTNK02 | Solution Tank | $104.85 |
| HP0008 | Weight Post | $88.72 |
| HEX10LBS | Approx. 10 lb. Weights | $46.79 |

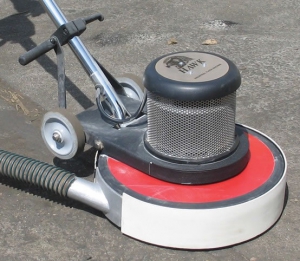

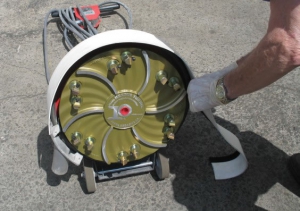

BUF-VAC FOR 17” BUFFERS
BUFVAC Assembly
BUFVAC Assembly
| BUFVAC1 | Buf-Vac (TM) | $147.11 |
| BFVCRB1 | Rubber Vacuum Shield | $69.23 |

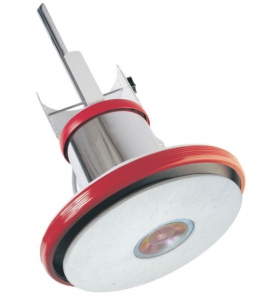

16” SANDING PLATE ATTACHMENT
| BUFSPL16 | 16” Sanding Plate Attachment | $303.87 |
| BUFFELT16 | 16” Replacement Felt Pad | $26.81 |
